Bluetti Comparison Chart: Specs for Every Model

When trying to figure out which Bluetti power station is best, you’ll quickly see this brand has no shortage of options. This Bluetti comparison chart with specifications for every model can help you sift through the numbers to see what fits your needs.

This article breaks down all of the Bluetti specifications. We’ll start with an overview of the most important specs, then break them up based on category. You’ll be able to easily compare the charging rates, outlets, and other features of each Bluetti power station. At the end, there’s a large table that lists all of the specs for all the options in one place.

Let’s dive into the Bluetti comparison charts.

We carefully select the products and services we link to. If you buy through our links, we may earn a commission. There’s no extra cost to you and it helps us provide this information.

Quick Summary

There are more than 20 Bluetti power stations with over 30 specifications each. That’s a little overwhelming. So let’s start with two quick summaries:

1. Option to choose up to three power stations to compare
2. Bluetti comparison chart with all power stations and the most important specs

After that, we’ll continue to review in-depth specifications for every Bluetti power station.

Choose Your Comparison

In this section, choose up to three power stations and the specs you want to see. Then click “Show Comparison” to view a table with that information.

If you’d rather browse the full lineup of Bluetti comparison charts, just skip over this.

High-Level Comparison Chart: All Power Stations

This chart and the ones after it include a full list of the Bluetti power stations. You can see a quick comparison of the entire brand lineup to get an idea of what fits your needs the best.

Here are some notes about this Bluetti table:

• System Max: These columns show the maximum battery capacity and AC output when you pair the power station with expansion batteries and/or multiple power stations. They are based on Bluetti recommendations for how to use these products, but it might be possible to exceed these values with creative solutions.
• Battery: These values show the capacity of the power stations or the entire systems using extra battery packs and multiple power stations. They are provided in watt-hours. If you want to compare them to other batteries in amp-hours, just divided the watt-hours by the voltage of the amp-hour battery you want to compare it to. For example, a 1,000Wh Bluetti battery when compared to a 12V system is equal to 83.3Ah.
• AC Output: This is the rating of the AC inverter for the regular 110V or 240V outlets on the power station. The value shown here is the continuous rating, but many Bluetti power stations have Power Lifting mode that can run at about double the watts for a short period.
• Inputs: The AC Input and Solar Input values show you how fast the power stations can recharge. The higher the wattage, the faster the rate of charge. To get a rough idea of how many hours it takes, take the battery size and divide by the input watts. For example, a 1,000Wh battery can recharge in about one hour if the input is rated at 1,000W. Real-world values will be longer due to inefficiencies and battery protection measures.
• Buy Now: This button takes you directly to Bluetti website for the power station of that row.
• Premium: Bluetti also has a Premium lineup of power stations. The Premium models end with a “P” and usually have a larger battery and sometimes faster charging. We’ve left many of these off this list because they’re similar to the regular models and this table would be too large.

Largest Bluetti

BLUETTI EP900 + B500 Home Battery Backup Largest Bluetti power station Up to 39.7Wh battery Integrated home connections Lacks portability

EP900 on Bluetti

Top Pick

BLUETTI AC500 + B300S Home Battery Backup Exceptional portable power station Up to 36.9kWh battery and 240V output Serious expansion capabilities

AC500 on Bluetti AC500 on Amazon

Top Mid-Size

BLUETTI AC200L Portable Power Station 2,048Wh internal battery Add up to two external batteries 2.4kW inverter and solar input Can’t do 240V

AC200L on Bluetti AC200L on Amazon

Replaceable Batteries

BLUETTI AC180T Solar Portable Power Station Two swappable batteries Pairs well with new portable fridge Great all-around power station

AC180T on Bluetti AC180T on Amazon

Great Choice

BLUETTI AC50B Portable Power Station Great battery to inverter balance Long warranty 2 USB-C ports

AC50B on Bluetti AC50B on Amazon

Disclaimer: We do our best to provide accurate details, but please verify any critical details with the appropriate Bluetti documentation. These figures are subject to change and we cannot guarantee their accuracy.

The Details: Compare Every Bluetti Power Station

Now we can dive deep into the specifications for each Bluetti power station. If you want, you can also look at our EcoFlow Specs vs. Bluetti Specs to see a head-to-head comparison of their power stations, with the ability to select the power station you want to see.

It might be helpful to quickly review our article on How to Understand Power Station Specs if these numbers don’t mean much to you.

We’ll cover these aspects with separate tables for each:

• AC Inverter and Charging
• Solar Charging Details
• Weight and Dimensions
• AC Outlets and DC Ports
• Bluetti User Manuals

AC Inverter and Charging

Here are the AC related specifications, such as the AC power inverter and the rates for home charging from a regular 110V power outlet.

Here are some notes about the AC specifications:

• AC Output: The single-unit continuous power for the AC inverter. This is what one unit can power at one time through the AC outlets. It is best to avoid using the full power for an extended period. Instead, try to keep to about 75% of this rating to protect the longevity of your Bluetti.
• AC Output (System Max): This is the Bluetti recommendation for pairing the most power stations together. It is the continuous rating of the power stations connected through a split phase array or separate power hub connector.
• AC Output Peak: This is the peak rating of the AC inverter for one unit, which Bluetti usually calls Power Lifting Mode. It does NOT show what the peak output for an entire system of multiple power stations. Just what one power station can power for a very short time (startup of high-powered devices). If you have air conditioners or other high-powered devices with large startup surges, consider a soft start device to avoid too big of a spike.
• UPS / EPS: Many Bluetti systems are designed to be used as a UPS device, or uninterruptible power supply. This allows you to connect the power station to power critical devices off of the AC grid outlet when available. Then if a power outage occurs, the power station automatically switches to the internal battery. Some sensitive electronics like computers or TVs might not be able to avoid rebooting if the switchover time is too long.

Solar Charging Details

When you want to charge your power station from solar panels, understanding the Bluetti solar input specifications is vital.

You never want to exceed the maximum voltage. And the power station won’t accept any current over the rated amps. For more information, see our post about How Many Solar Panels Can Your Power Station Handle? It helps you calculate how many panels you can use and shows a diagram of what your solar panel connections should look like.

Here are the solar input details for each Bluetti power station:

Notes about this Bluetti comparison chart for solar input:

• Solar Input: This is the most wattage a single Bluetti power station can handle. This may be split up between more than one solar input, depending on the unit.
• Solar Input (System Max): This is based on using multiple power stations together, in Bluetti recommended amounts. This is greater than the single-unit amount because it uses more than one power station.
• Solar Input 1 vs. Solar Input 2: These specifications show the details for each input to the power station. Some Bluetti solar generators have more than one input. Not all have more than one.
• Voltage: As a reminder, never exceed the maximum voltage. The Voc rating of your solar panels, the number of series connections, and the temperature all impact the voltage coming from the panels.
• Watts = Volts x Amps: This simple formula can help identify how many watts you can expect to generate. In some cases, the power station might limit the rate to a specific wattage even if the volts x amps calculation seems to be higher.

You can see other details on our posts about Calculating the Solar Panels You Need and How to Connect Solar Panels: Series vs. Parallel. Our How Many Panels Calculator helps figure out how many panels you can use with a specific power station.

Weight and Dimensions

Here is a full list of the the Bluetti power station weights and dimensions:

AC Outlets and DC Ports

Knowing how to connect devices to any power station is crucial. This list of the AC outlets and DC ports, including USB ports, can help figure out what you need. We’ve also included how much power is behind each outlet. As always, the useful calculation of watts = volts x amps might be useful.

Notes for the outlets and ports of Bluetti solar generators:

• 120V Outlets: Most of these are the usual 15A or 20A plug you find at home with three prongs. But a couple of them are higher-powered 30A or even 50A outlets that have a different design. See the Bluetti listing for more details on which outlet they use in particular.
• 240V Outlets: Many Bluetti power stations do not have a 240V outlet on the device. But you might be able to create one with two 120V outlets connected through a split phase array.
• Connectivity: The Bluetti app allows you to control and monitor your Bluetti power station from afar. The largest and most advanced systems have WiFi, Bluetooth, and USB connections. While the smallest have just Bluetooth, which means you must be nearby to control it. If it has WiFi connectivity, that means you can control it from anywhere as long as you can connect to the internet and the power station is near a WiFi network (it does not create a WiFi signal).

Bluetti User Manuals

For more details on how to use each model, refer to the Bluetti user manual:

Images of Bluetti Power Stations

It always helps to see what the Bluetti power stations look like. Here is an image of a selection of Bluetti power stations along with links to more details:

BLUETTI EP900 + B500 Home Battery Backup

This is the largest Bluetti power station that is designed for stationary home battery backup use. See how it stacks up against the Best Solar Generators for Home Backup.

Largest Bluetti	BLUETTI EP900 + B500 Home Battery Backup Largest Bluetti power station Up to 39.7Wh battery Integrated connections Lacks portability	EP900 on Bluetti
Smaller Battery	BLUETTI EP800 + B500 Home Battery Backup Very powerful home battery backup Up to 19.8kWh battery More affordable than EP900 Lacks portability	EP800 on Bluetti EP800 on Amazon

BLUETTI AC500 + B300S Home Battery Backup

Another top choice for home backup from Bluetti. The EP500 is also included in the table as it fits this same category, although it lacks the same battery expansion capabilities.

Top Pick	BLUETTI AC500 + B300S Home Battery Backup Exceptional portable power station Up to 36.9kWh battery and 240V output Serious expansion capabilities	AC500 on Bluetti AC500 on Amazon
	BLUETTI EP500Pro Solar Power Station Portable and powerful system Includes 30-amp outlet 5.1kWh battery and 3kW output No expansion batteries	EP500Pro on Bluetti EP500Pro on Amazon
	BLUETTI AC300 + B300 Home Battery Backup Capable system similar to bigger AC500 Great charging capabilities Add up to 4 expandable batteries Battery not as good as B300S	AC300 on Bluetti AC300 on Amazon

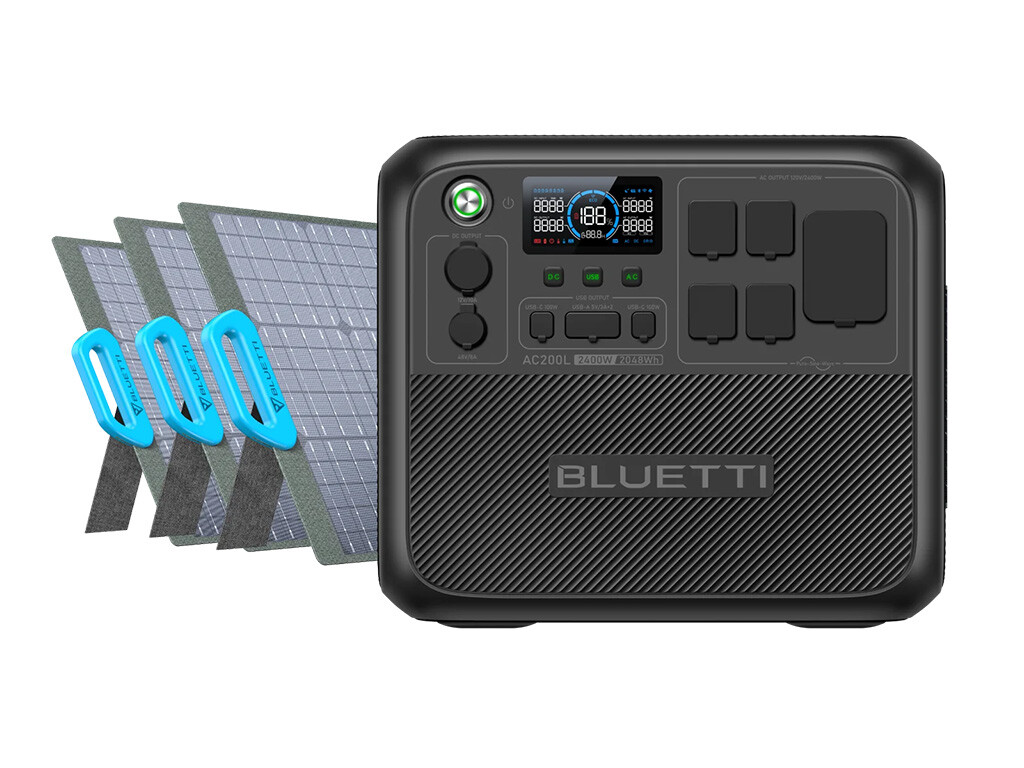

BLUETTI AC200L Portable Power Station

Our top pick for a mid-level power station from Bluetti. The AC200 lineup is extensive and offers excellent mid-level options for solar generators.

Top Mid-Size	BLUETTI AC200L Portable Power Station 2,048Wh internal battery Add up to two external batteries 2.4kW inverter and solar input Can’t do 240V	AC200L on Bluetti AC200L on Amazon
	BLUETTI AC200MAX + B230 Portable Power Station 4kWh total battery in system 2.2kW inverter and 900W solar input Can add another expansion battery Not quite as capable as the AC200L	Buy on Bluetti Buy on Amazon
	BLUETTI AC200P Portable Power Station	AC200P on Bluetti AC200P on Amazon

BLUETTI AC50B Portable Power Station

The smaller Bluetti power stations are more affordable and ideal for camping trips or keeping small devices running anywhere. The AC50B is one of the best and newest Bluetti power stations, but there are many great options in this category.

Top Pick	BLUETTI AC50B Portable Power Station Great battery to inverter balance Long warranty 2 USB-C ports	AC50B on Bluetti AC50B on Amazon
	BLUETTI PS72 Portable Power Station 700W output and ~700Wh battery Great portable solar generator Lightweight and compact design Not for heavy-duty devices	PS72 on Bluetti PS72 on Amazon
	BLUETTI EB3A Portable Power Station 600W output and ~265Wh battery	EB3A on Bluetti EB3A on Amazon

BLUETTI X60 CPAP Portable Power Bank

If you want to make sure your CPAP or other DC-powered medical device stays running, the special line of Bluetti CPAP power stations are there. The X60 has a better, bigger battery, but the X30 is a more cost-effective solution.

Best for CPAPs	BLUETTI X60 CPAP Portable Power Bank Works with 90% of CPAPs LiFePO4 / LFP battery	X60 on Bluetti X60 on Amazon
	BLUETTI X30 CPAP Portable Power Bank Integrated outputs to match CPAPs Up to 8 hours of power 5 outlets, 75W charging input, 15 lbs.	X30 on Bluetti X30 on Amazon

Bluetti Specifications: Full Comparison Chart

Get ready to be overwhelmed. Here is a full Bluetti comparison chart with specifications for every model all in one spot. Get ready to scroll.

Bluetti Comparison Chart: Wrap Up

This post has walked you through all of the comparison of Bluetti power stations you could ever want. We’ve shown the fine details and quick summaries you need to know to make the right decision.

Want to see how these stack up against another world-class power station brand? Head over to our EcoFlow Comparison Charts post.
